HC-SR04 Ultrasonic Sensor

( 0 Ratings )
THB 60.00 THB 55.00
หมวดหมู่สินค้า: Sensors
รหัสสินค้า: NF51940

มีสินค้าอยู่ 5 ชิ้น

จำนวน

ราคาทั้งหมด

THB 55.00
" ราคาสินค้ารวมภาษีมูลค่าเพิ่มแล้ว "

รายละเอียด

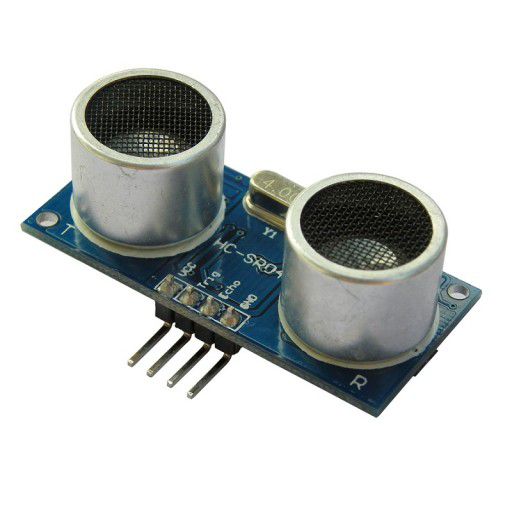

If you've been searching for distance measurement and object detection sensor at a rock-bottom price, look no further! This legendary HC-SR04 ultrasonic sensor is your perfect choice. It offers excellent range accuracy and fairly stable readings at a very low cost. It requires two digital I/O pins (an output pin and an input pin) to interface with it.

An ultrasonic sensor is created based on the principle of echolocation used by animals like bats and dolphins. Since the ultrasonic sensor uses sonar to determine the distance to an object, its operation is not affected by sunlight, spotlight and object's surface color which will affect the readings of any infrared distance sensors. However acoustically soft materials such as clothes can be difficult to detect.

Features:

  • Power Supply: 5V DC

  • Quiescent Current : less than 2mA

  • Working Current: 15mA

  • Effectual Angle: less than 15°

  • Ranging Distance : 2cm – 400 cm or 1" - 13ft

  • Resolution : upto 0.3 cm

  • Dimension: 45.3 x 20.4 x 15.4mm (not including 4-way header pins)

Packing List:

  • 1x HC-SR04 Ultrasonic Sensor
