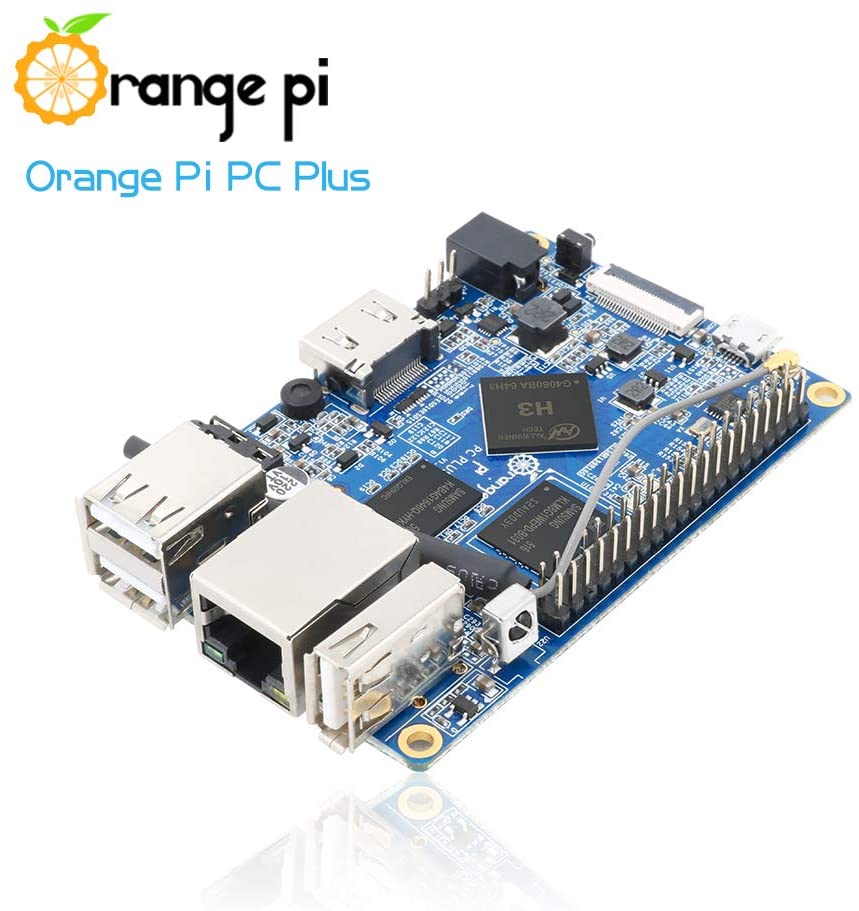

Orange Pi PC Plus is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM.


The Specs:
CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU: ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0

Memory (SDRAM): 1GB DDR3 (shared with GPU)

Onboard Storage: TF card (Max. 32GB) / MMC card slot, 8GB EMMC Flash

Onboard Network: 10/100 Ethernet RJ45

Video Input: A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface, Supports CCIR656 protocol for NTSC and PAL, Supports SM pixel camera sensor, Supports video capture solution up to 1080p@30fps

Audio Input: MIC

Video Outputs: Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS

Audio Output: 3.5 mm Jack and HDMI

Power Source: DC input, USB OTG input don't supply power

USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG

Buttons: Power button

Low-level peripherals: 40 Pins Header

GPIO(1x3) pin: UART, ground.

LED: Power led & Status led

Key: IR input,POWER

Supported OS: Android Lubuntu, Debian Image

Product size: 85mm × 55mm

Weight: 70g
